SC-5 Non-Ferrous Carbide Burr

SC-5 Non-Ferrous Carbide Burr – Aluminum Cut

The SC-5 Non-Ferrous Carbide Burr features a cylindrical radius end shape designed for smooth, controlled material removal on aluminum and other non-ferrous materials. Manufactured from solid carbide and finished with an aluminum cut tooth pattern, this burr provides efficient cutting action while helping reduce loading on softer materials.

The aluminum cut geometry offers increased chip clearance compared to standard double-cut burrs, making it ideal for aluminum, plastics, and fiberglass. The radius end allows for clean transitions and reduced marking when working on flat surfaces or internal profiles.

Key Features

• Solid Carbide Construction – Durable, heat resistant, and long lasting

• Aluminum Cut Tooth Pattern – Reduces loading and improves chip evacuation

• SC-5 Cylindrical Radius End Shape – Ideal for flat surfaces, slots, and contour transitions

• Designed for Non-Ferrous Materials – Smooth cutting without clogging

• 1/4″ Shank – Compatible with most die grinders and rotary tools

Ideal For

• Aluminum machining and removal

• Non-ferrous metals

• Plastics and fiberglass

• Deburring, shaping, and surface blending

• Fabrication, maintenance, and finishing applications

Specifications

• Type: SC-5 – Cylindrical Radius End Shape

• Cut Style: Aluminum Cut

• Material: Solid Carbide

• Shank Size: 1/4″

• Head Diameter: 1/2″

• Depth of Cut: 1″

• Package Quantity: 1 Carbide Burr

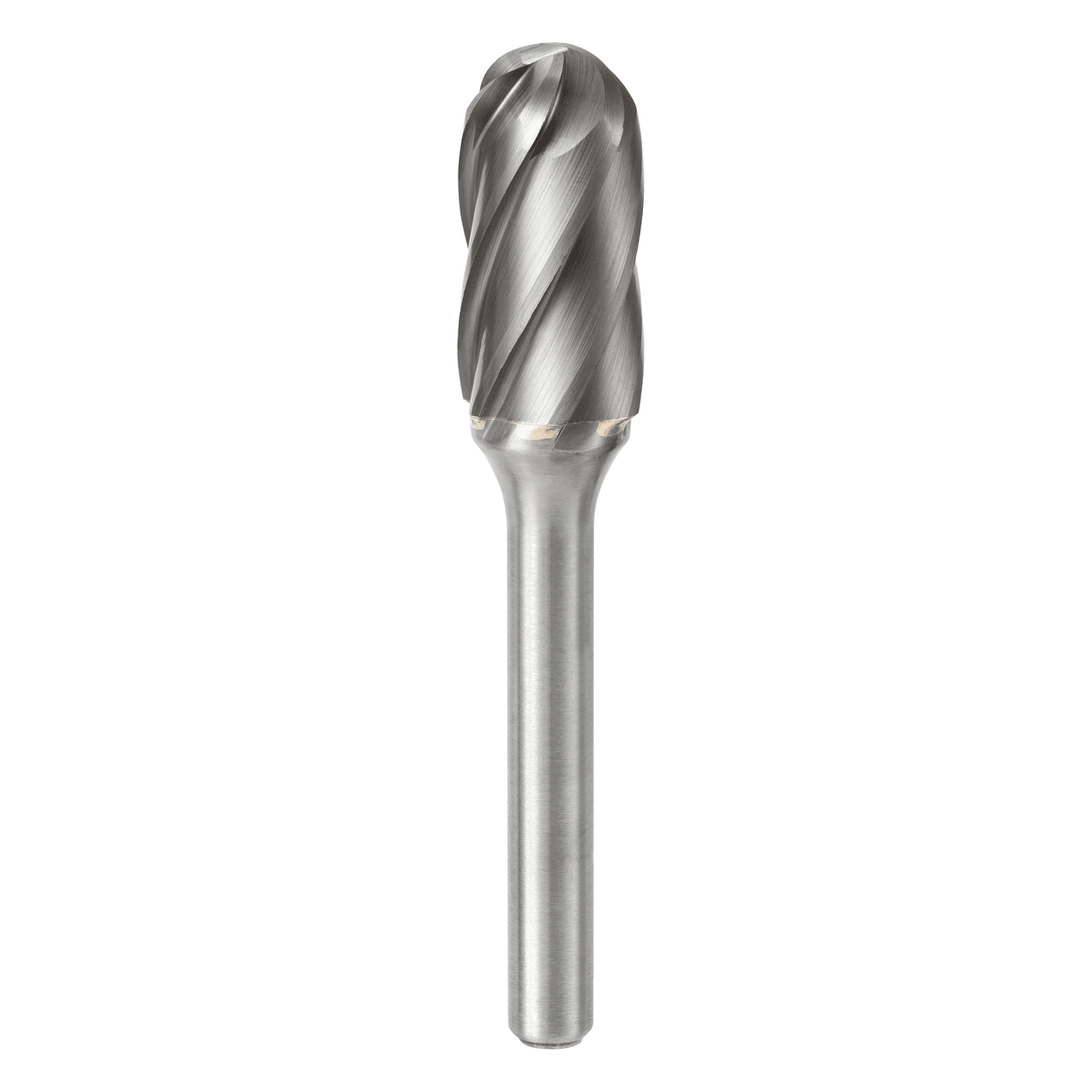

Image denotes shape only see dimensions above.
