SD-5 Double Cut Carbide Burr 6″ Long

SD-5 Double Cut Carbide Burr – 6″ Long

The SD-5 Double Cut Carbide Burr features a ball end shape designed for controlled material removal, profiling, and weld cleanup, especially in internal radii and contoured areas. Manufactured from solid carbide, this burr offers excellent durability, heat resistance, and long service life when working on steel and other hard metals.

The double cut tooth geometry produces smaller chips and smoother finishes while reducing chatter, providing improved control during grinding and finishing operations. The 6″ overall length allows for extended reach when accessing recessed or hard-to-reach areas.

Key Features

• Solid Carbide Construction – Durable, heat resistant, and long lasting

• Double Cut Tooth Pattern – Reduced chatter with smooth, controlled cutting

• SD-5 Ball End Shape – Ideal for internal contours, profiling, and blending

• 6″ Overall Length – Extended reach for recessed or confined areas

• 1/4″ Shank – Compatible with most die grinders and rotary tools

Ideal For

• Metal removal and shaping

• Weld grinding and cleanup

• Deburring and edge finishing

• Steel, stainless steel, and cast iron

• Fabrication, maintenance, and repair applications

Specifications

• Type: SD-5 – Ball End Shape

• Cut Style: Double Cut

• Material: Solid Carbide

• Overall Length: 6″

• Shank Size: 1/4″

• Head Diameter: 1/2″

• Depth of Cut: 7/16″

• Package Quantity: 1 Carbide Burr

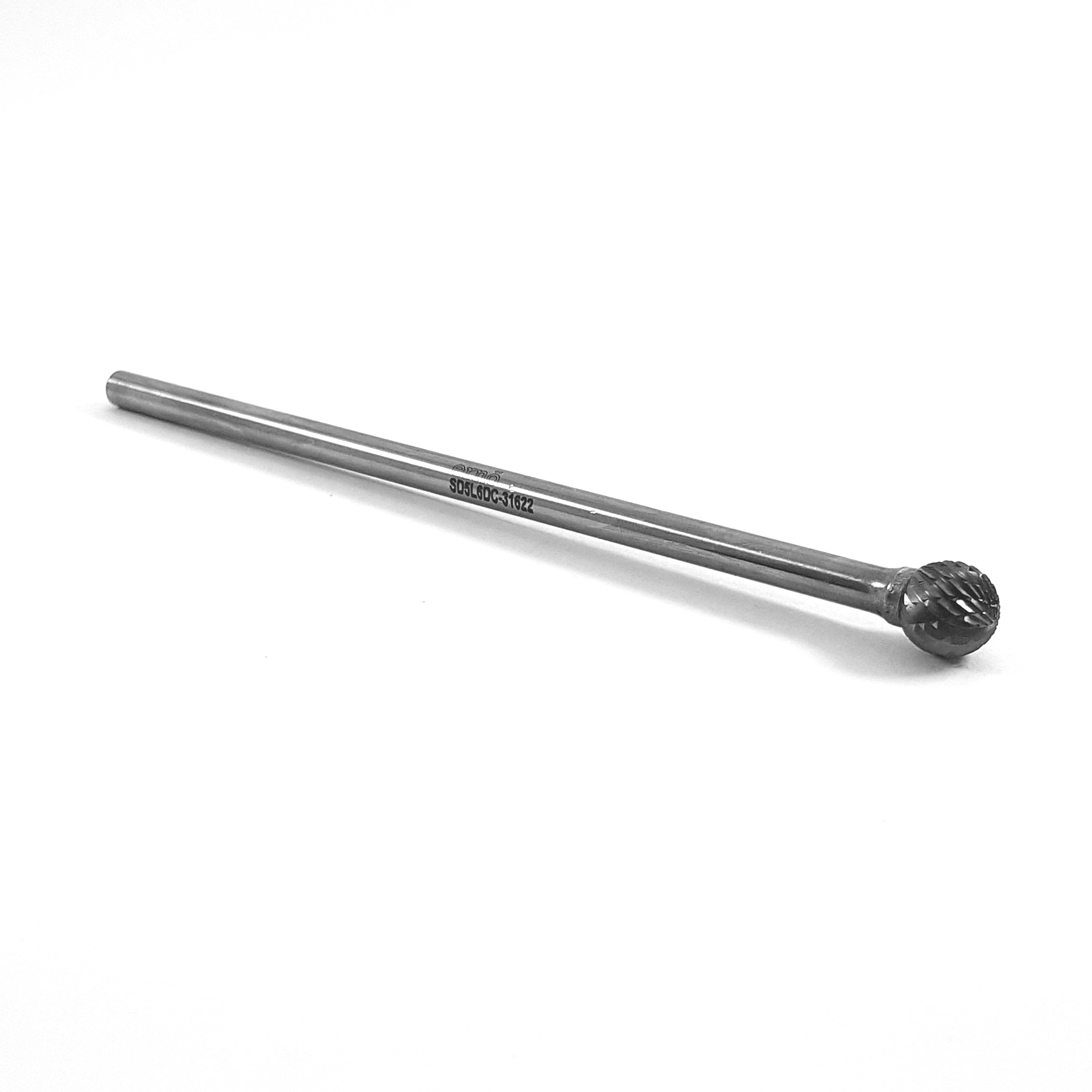

Image denotes shape only see dimensions above.
